PS Series — Multi-Model Specifications
供應情形： 有現貨
型號： PS-0619
← 請左右滑動表格查看完整數據 →

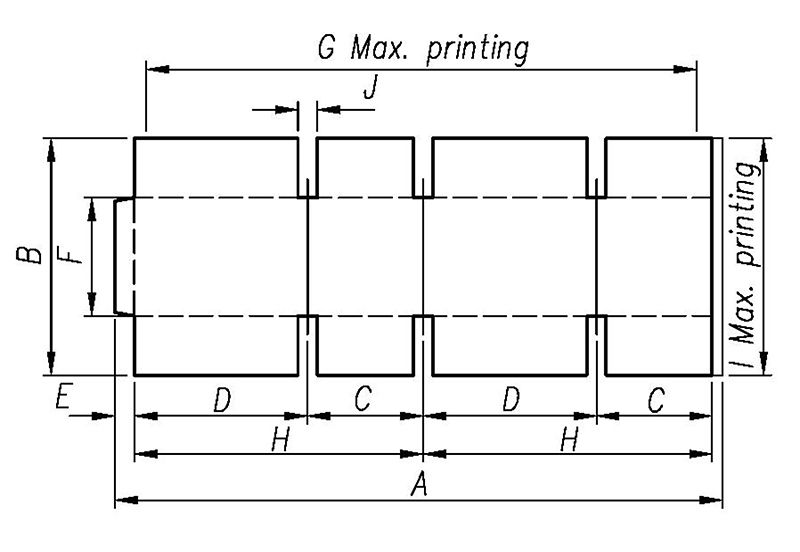

| Specification | PS-0619 | PS-1022 | PS-1025 | PS-1225 | PS-1228 | PS-1624 | PS-1628 | ||
|---|---|---|---|---|---|---|---|---|---|
| 27" | 42" | 42" | 50" | 50" | 66" | 66" | |||
| MACHINE SIZE | 635 × 1900 | 1000 × 2200 | 1000 × 2500 | 1200 × 2500 | 1200 × 2800 | 1600 × 2400 | 1600 × 2800 | ||
| A | FINISHED BLANK | MAX. | 1900 | 2200 | 2500 | 2500 | 2800 | 2400 | 2800 |
| MIN. | 480 | 545 | 545 | 705 | 705 | 745 | 745 | ||
| H | TWO PANELS | MAX. | 910 | 1055 | 1205 | 1205 | 1355 | 1155 | 1355 |
| MIN. | 220 | 250 | 250 | 330 | 330 | 350 | 350 | ||
| C | SMALL PANEL | MAX. | 800 | 880 | 1030 | 1010 | 1160 | 905 | 1105 |
| MIN. | 110 | 75 | 75 | 135 | 135 | 100 | 100 | ||
| D | LARGE PANEL | MAX. | 800 | 980 | 1130 | 1070 | 1220 | 1055 | 1255 |
| MIN. | 110 | 175 | 175 | 195 | 195 | 250 | 250 | ||
| E | GLUE LAP WIDTH | MAX. | 40 | 45 | 45 | 45 | 45 | 45 | 45 |
| F | GLUE LAP LENGTH | MIN. | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
| B | SHEET WIDTH (SUN LEAD EDGE FEEDER) | MAX. | 635 | 985 | 985 | 1170 | 1170 | 1540 | 1540 |
| MIN. | 215 | 265 | 265 | 300 | 300 | 440 | 440 | ||
| SHEET WIDTH (SKIP FEED) | MAX. | 840 | 1350 | 1350 | 1520 | 1520 | 2000 | 2000 | |
| I×G | PRINTING AREA | MAX. | 635 × 1800 | 1000 × 2050 | 1000 × 2350 | 1200 × 2350 | 1200 × 2650 | 1600 × 2250 | 1600 × 2650 |
| J | SLOT WIDTH | 6.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | |
| SQUARE BOX | MAX. | 455 | 500 | 600 | 600 | 675 | 577 | 677 | |
| MIN. | 110 | 175 | 175 | 195 | 195 | 250 | 250 | ||
| MAX. MACHINE SPEED (SHEETS/MIN) | 400 | 350 | 350 | 280 | 280 | 150 | 150 | ||
